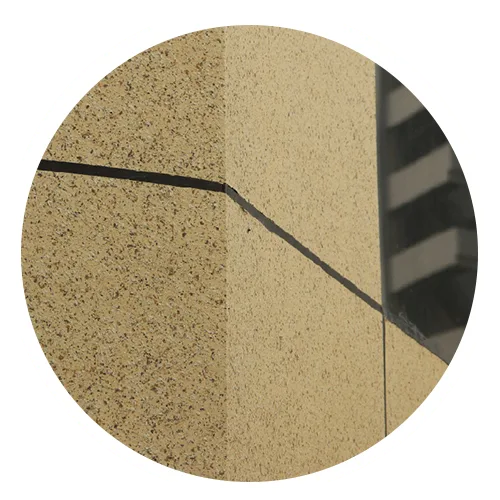

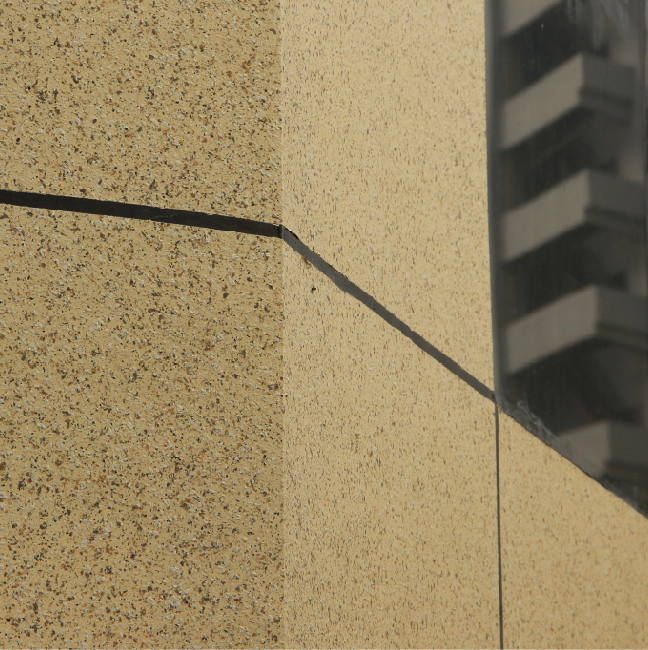

Liquid Granite

WALL BOTH

Granite-effect architectural coating system for exterior and interior walls and approved landscape design applications.

Liquid Granite delivers a refined granite texture through a multi-coat spray system. Applied by trained applicators using a 3mm nozzle spray gun, the system builds up a pattern coat that replicates natural granite at a fraction of the weight and installation complexity.

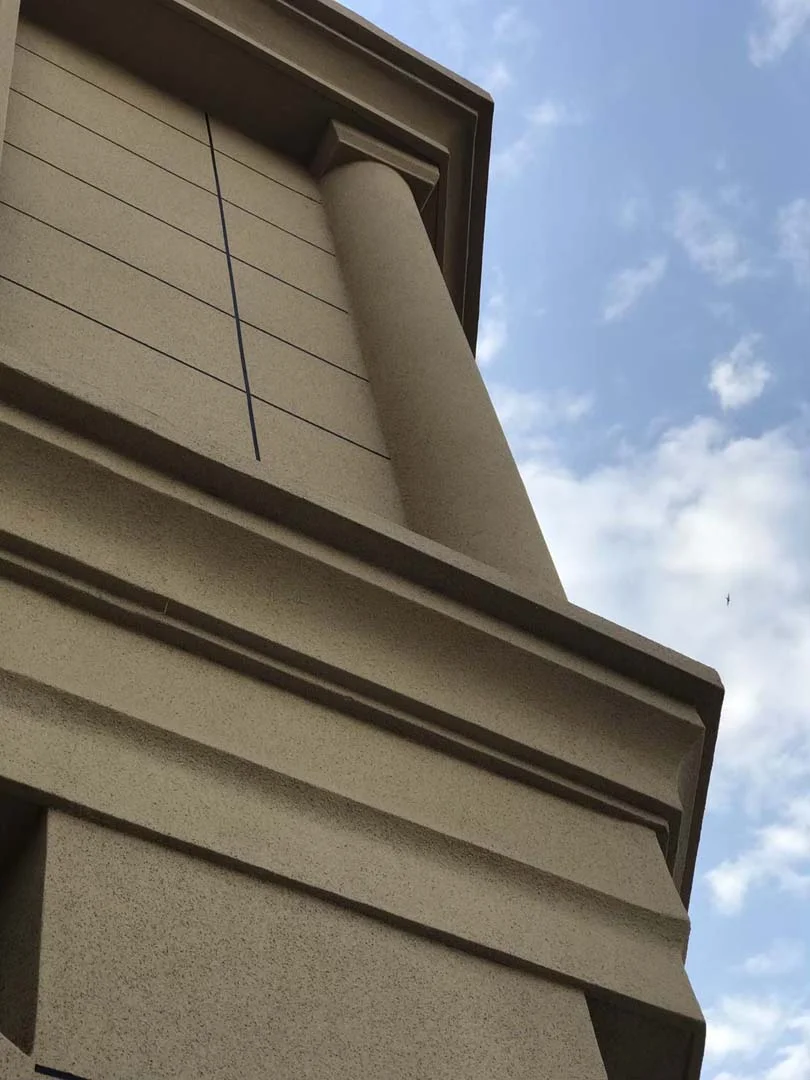

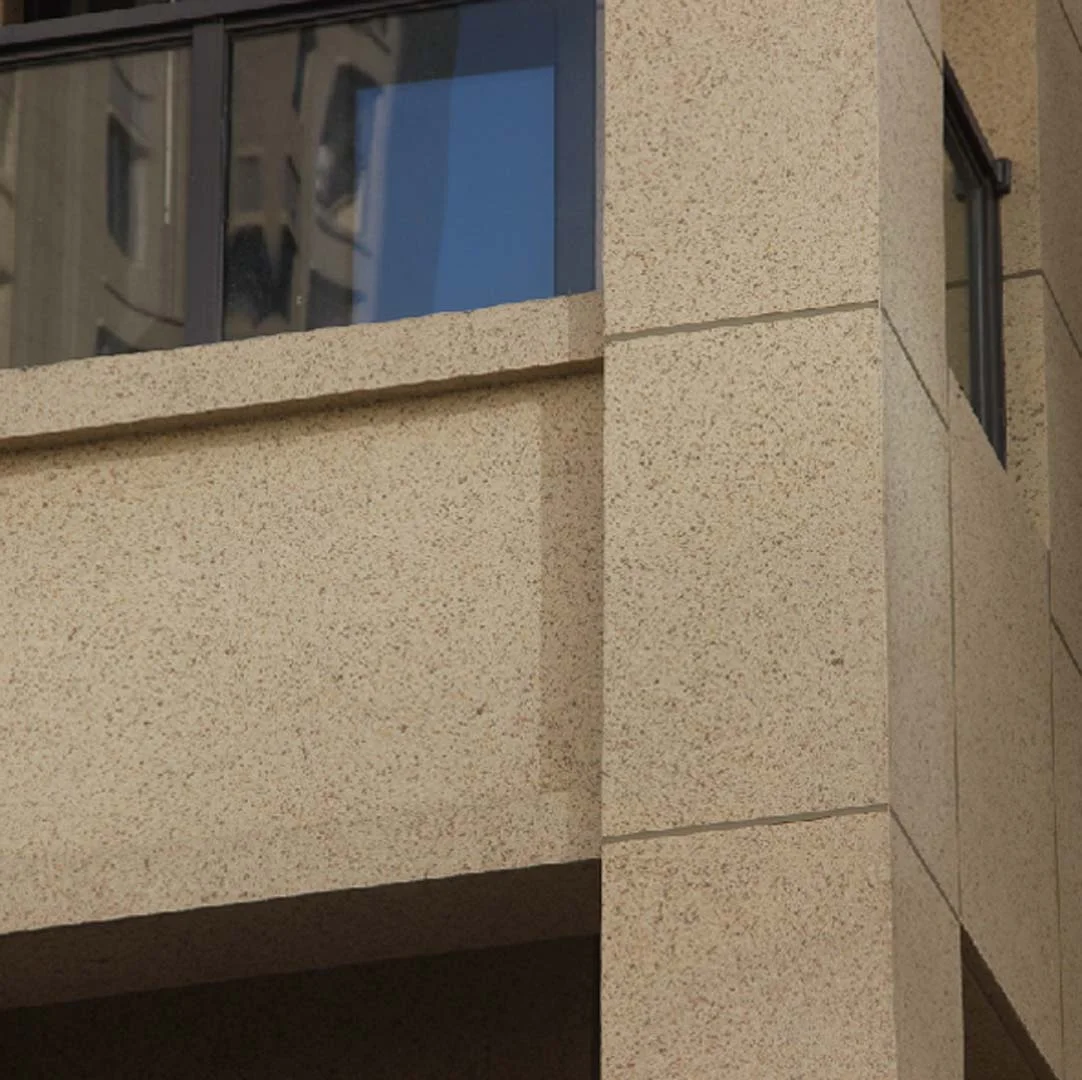

Suitable for exterior facades, architectural feature walls, interior decorative surfaces and select landscape design elements.

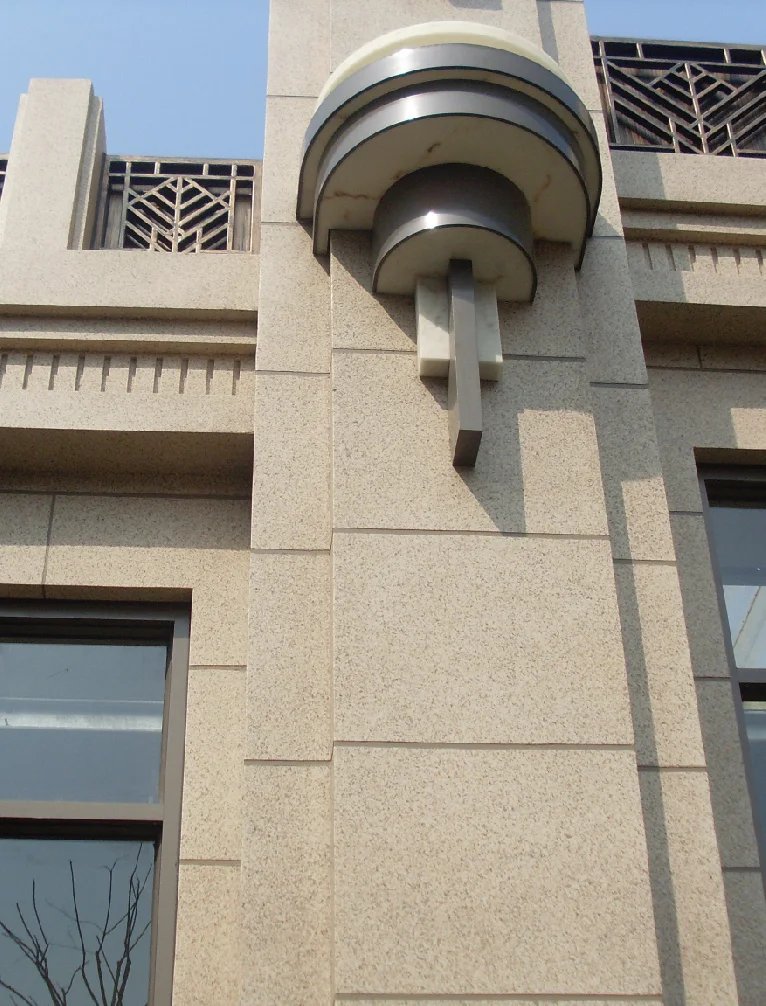

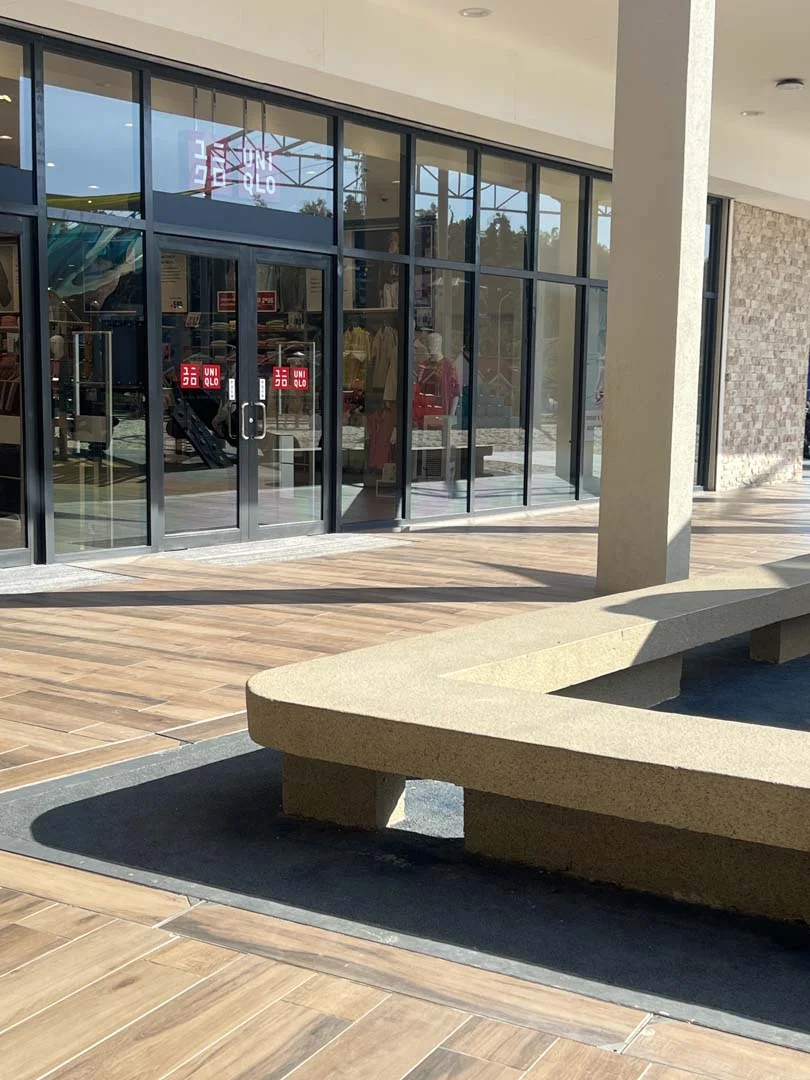

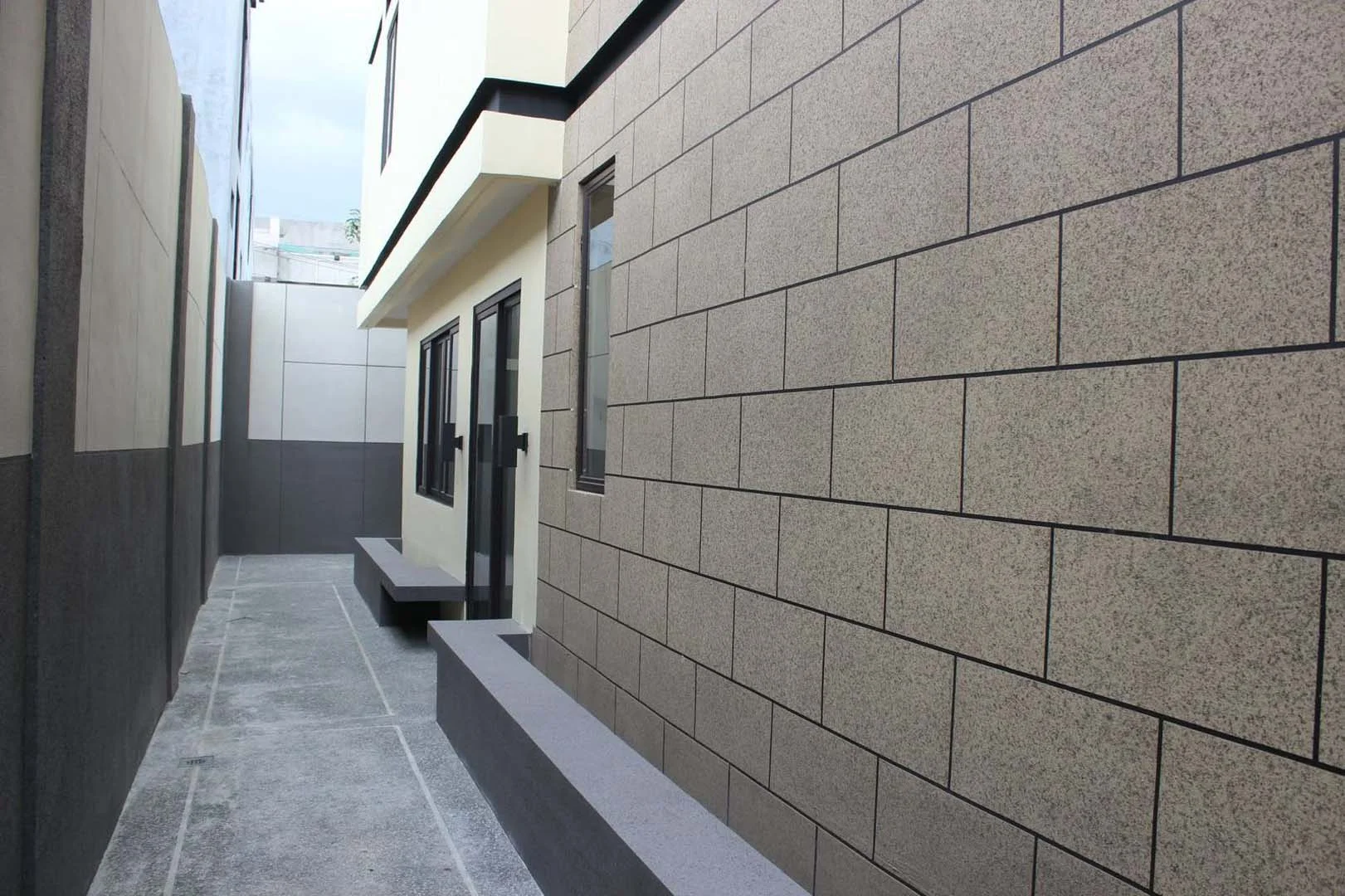

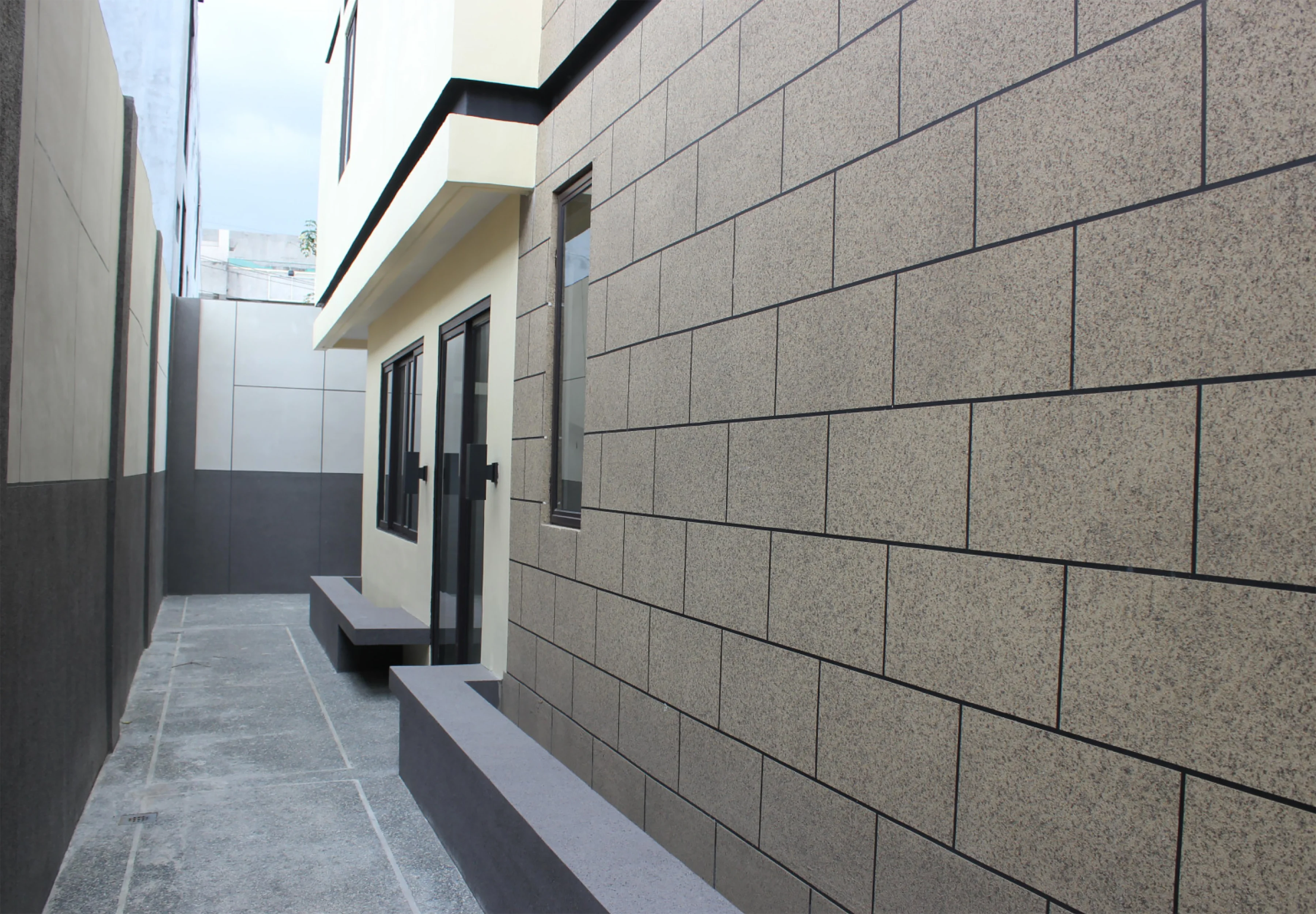

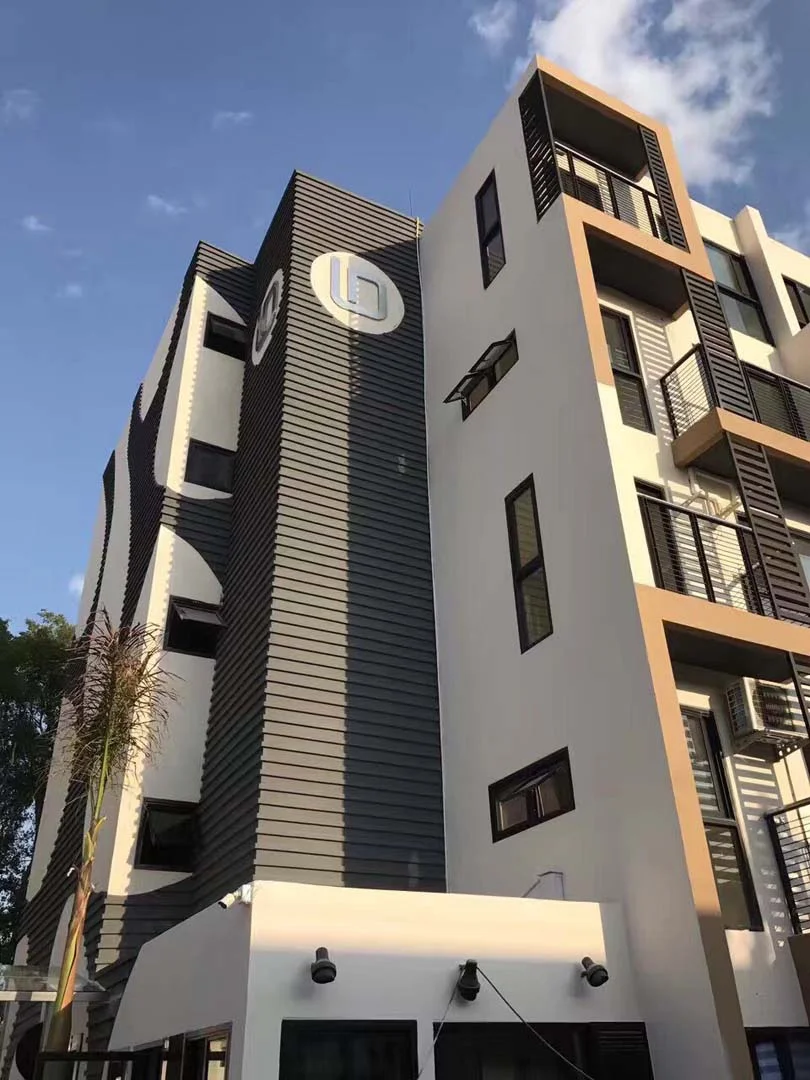

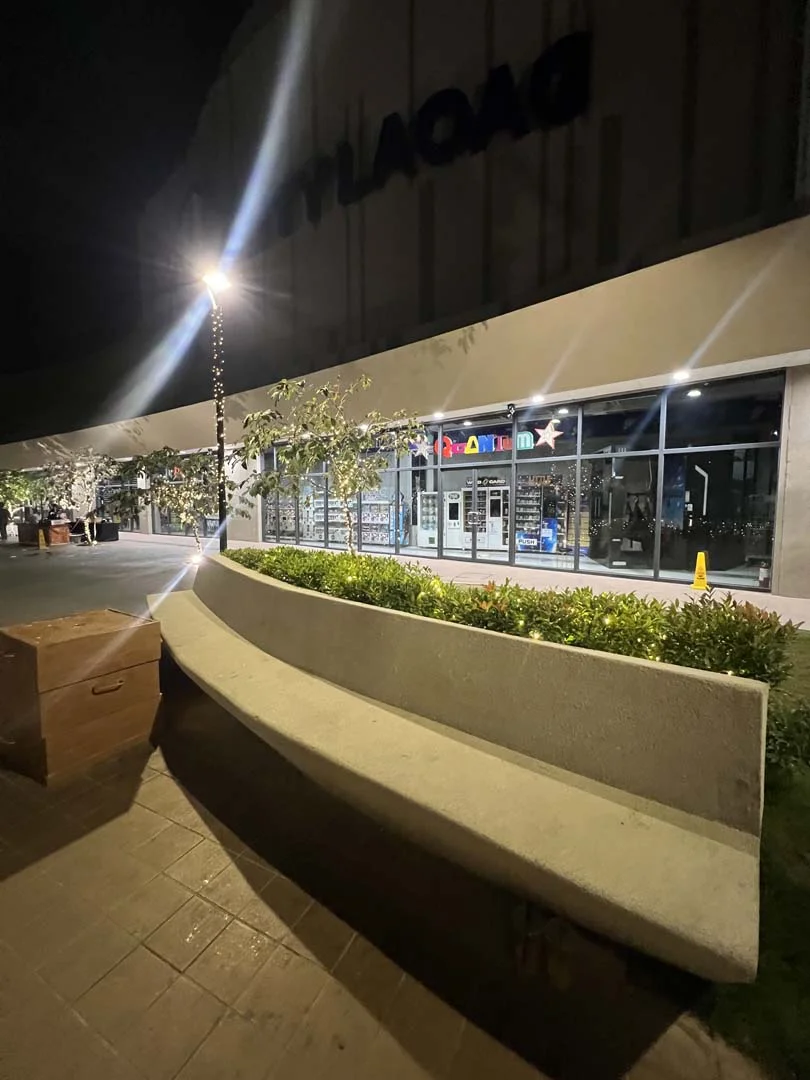

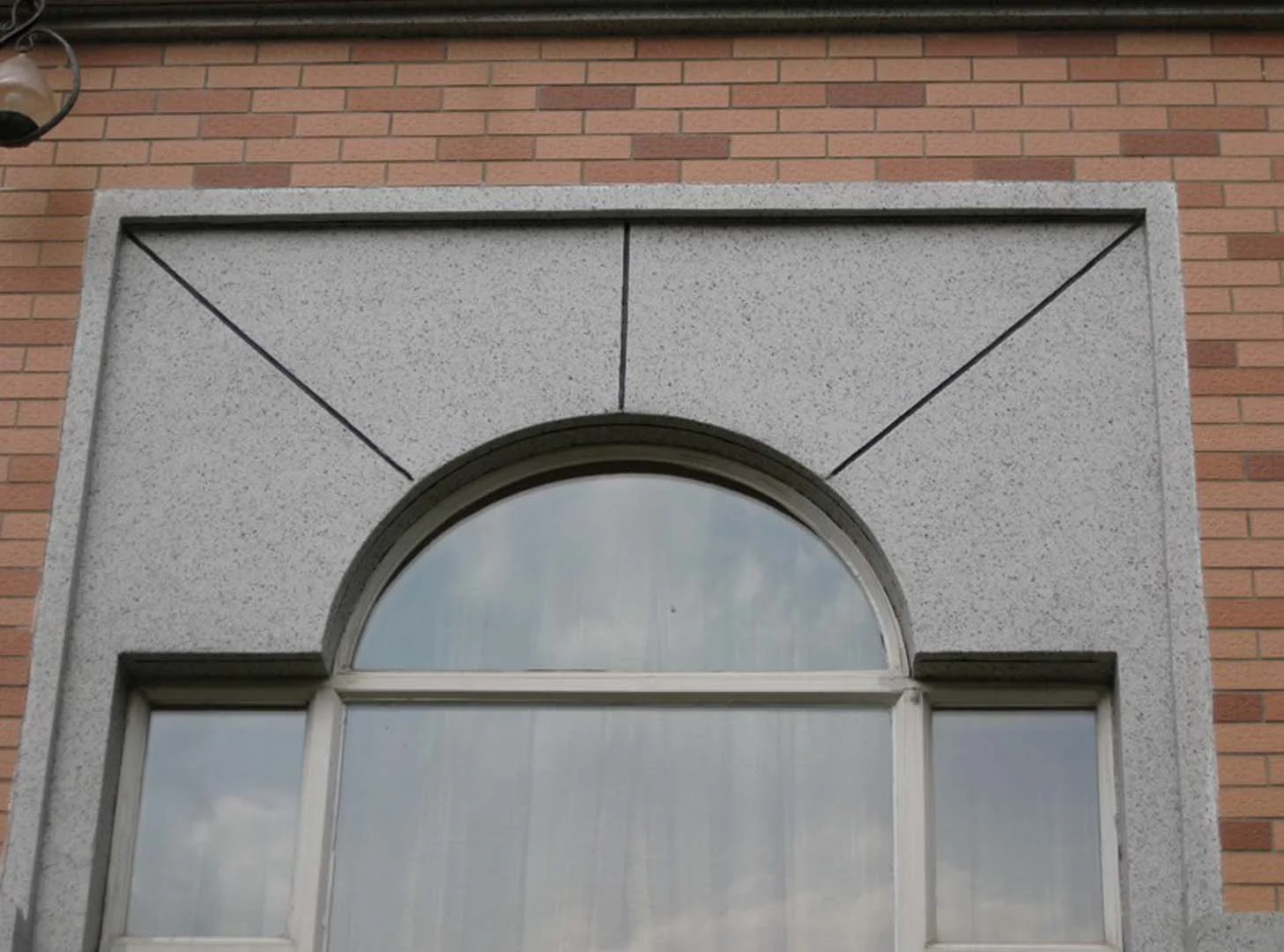

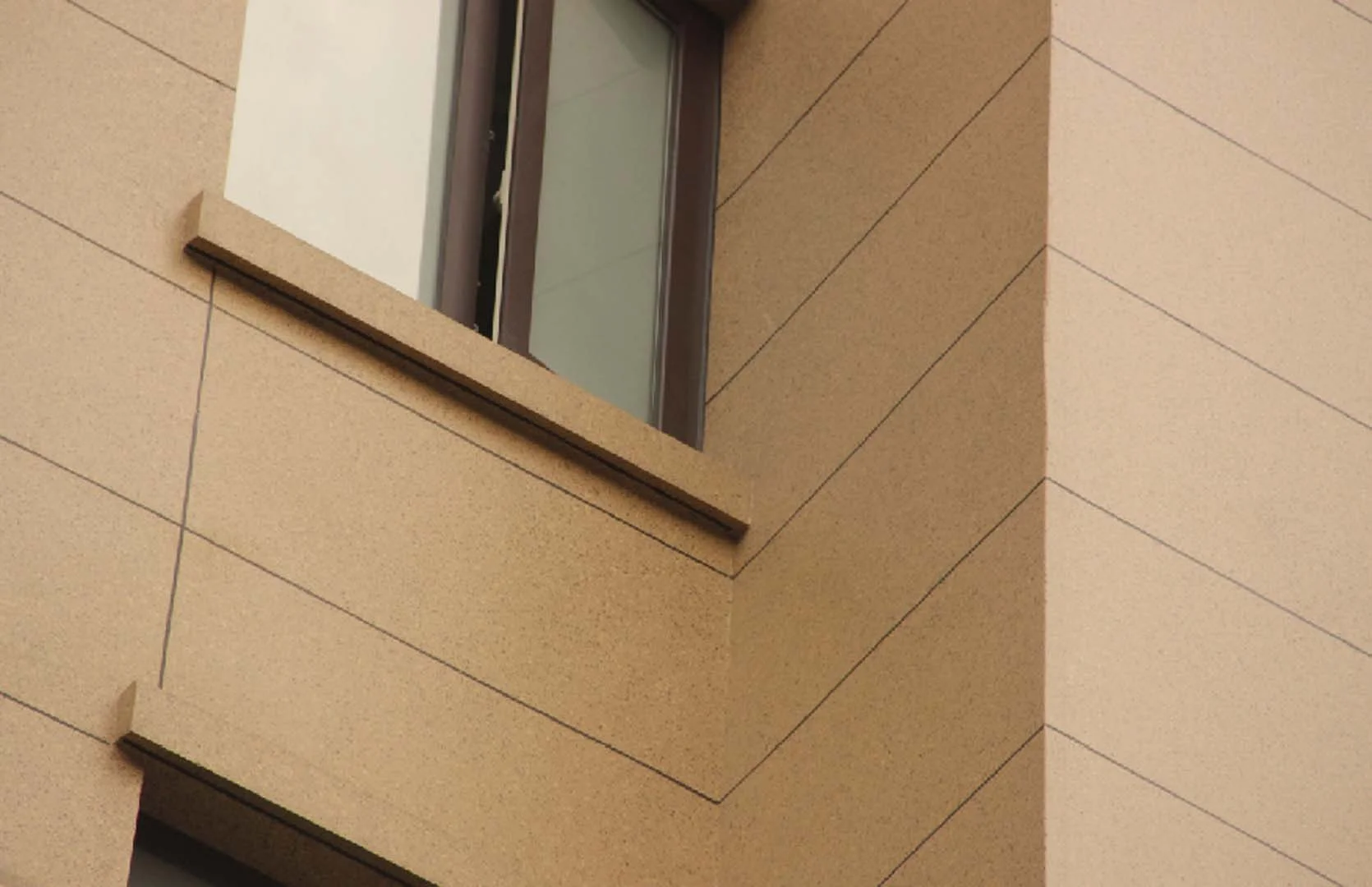

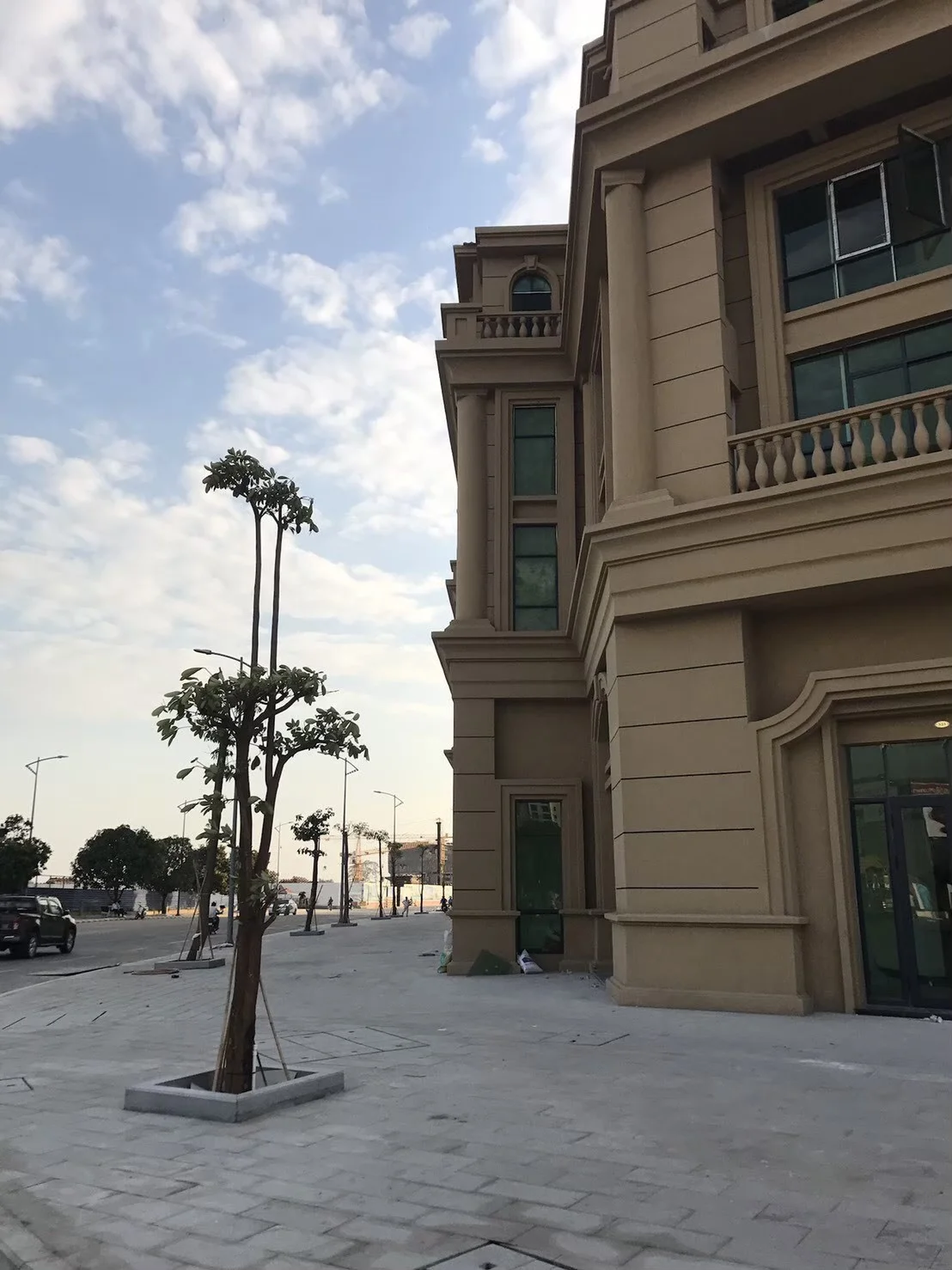

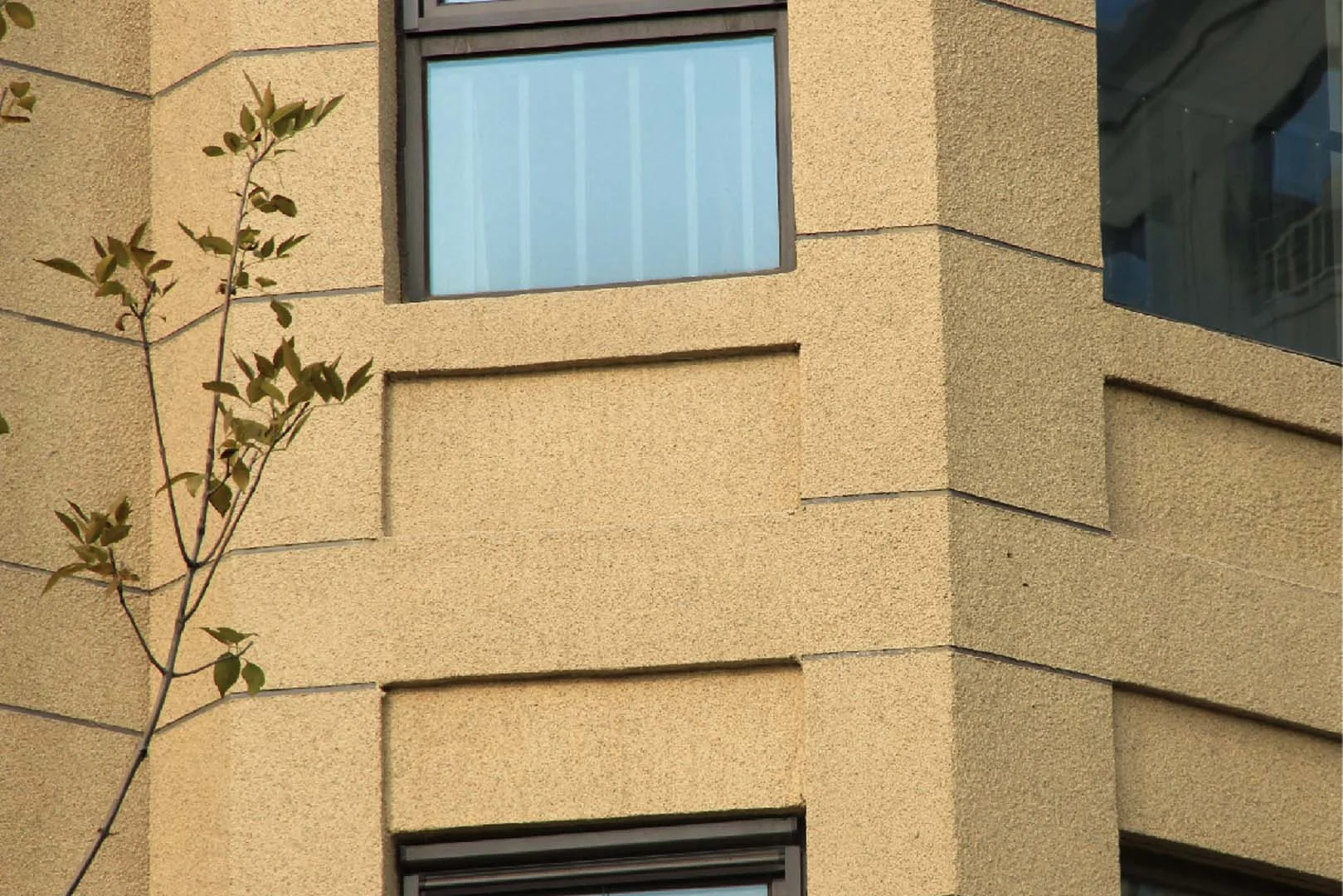

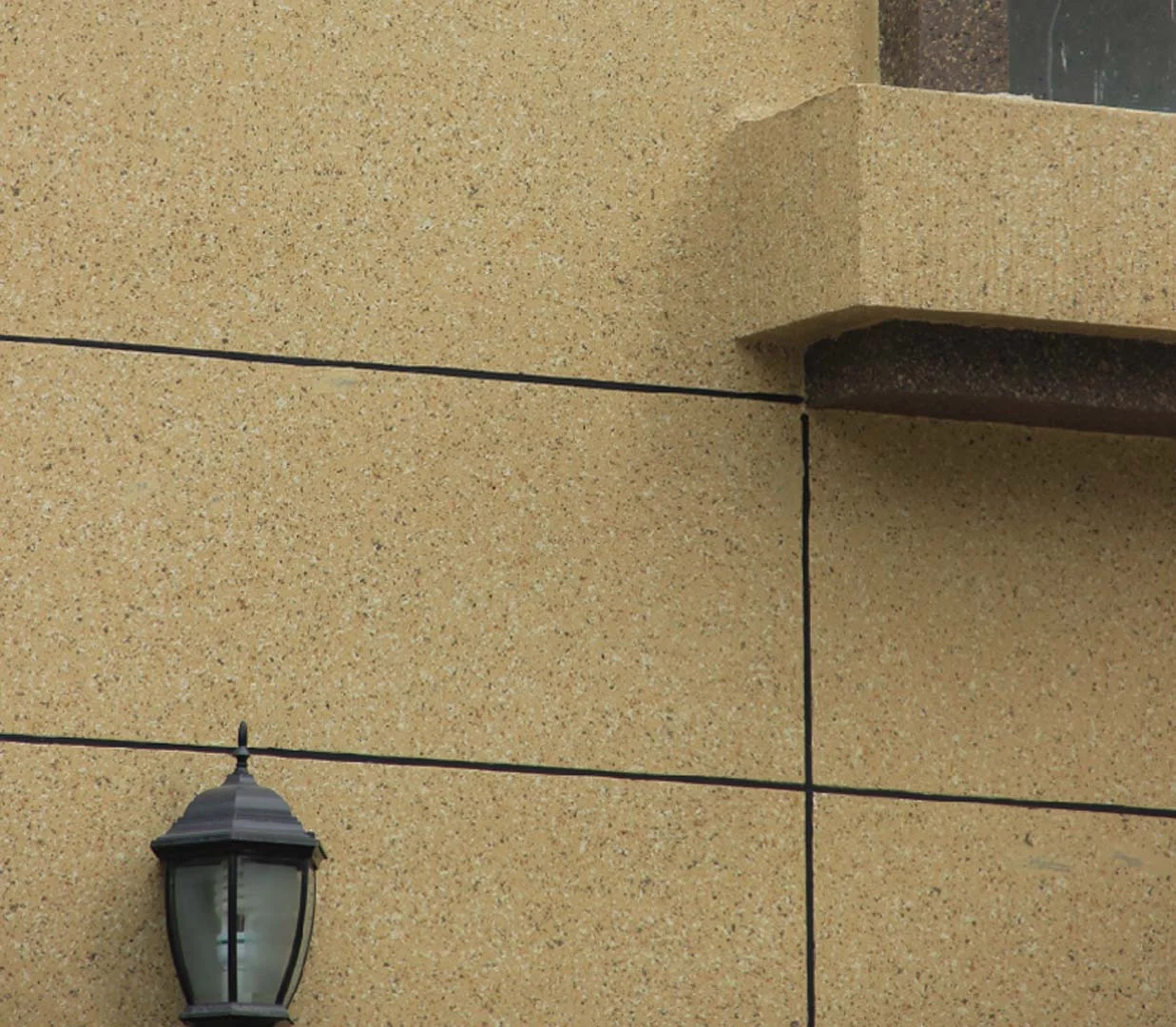

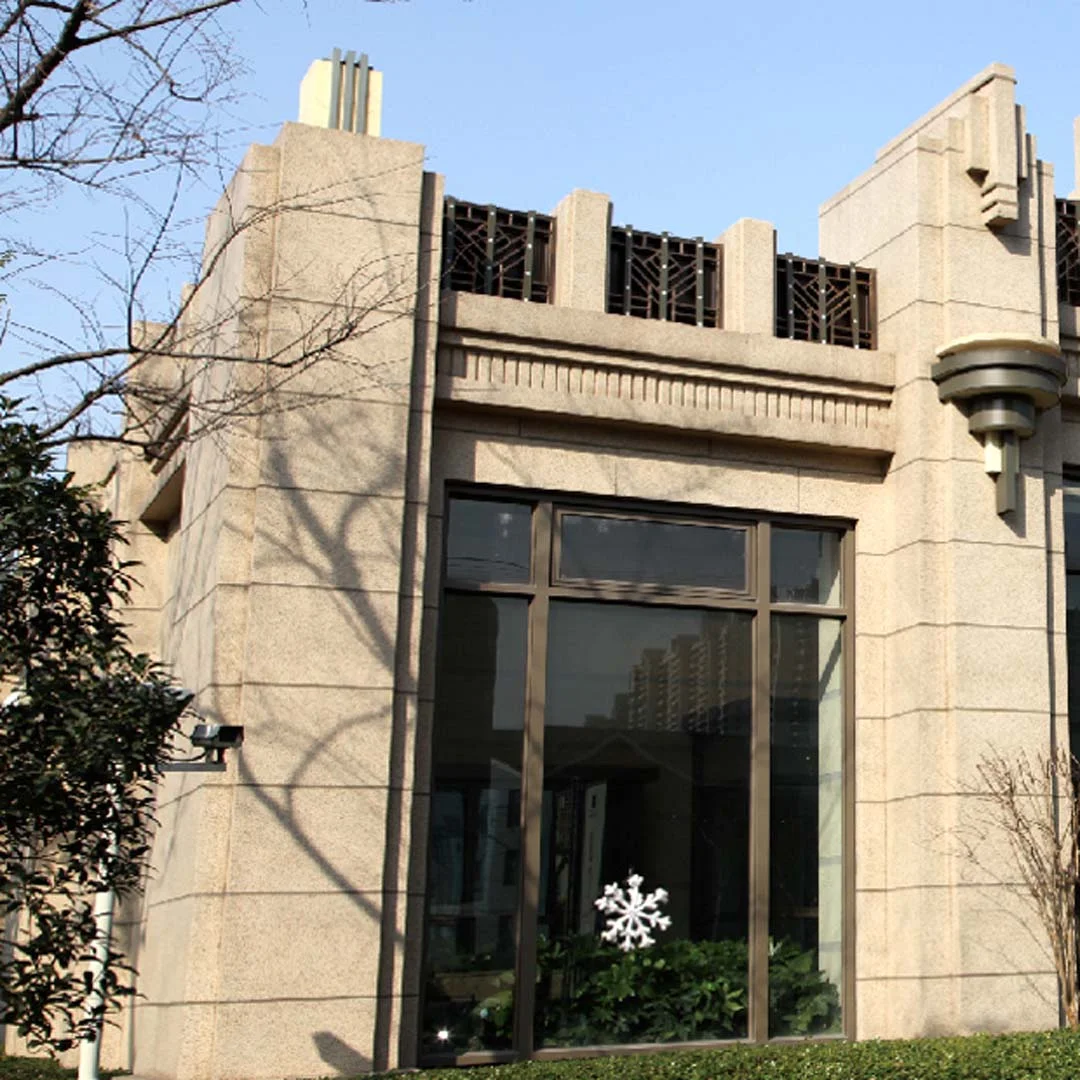

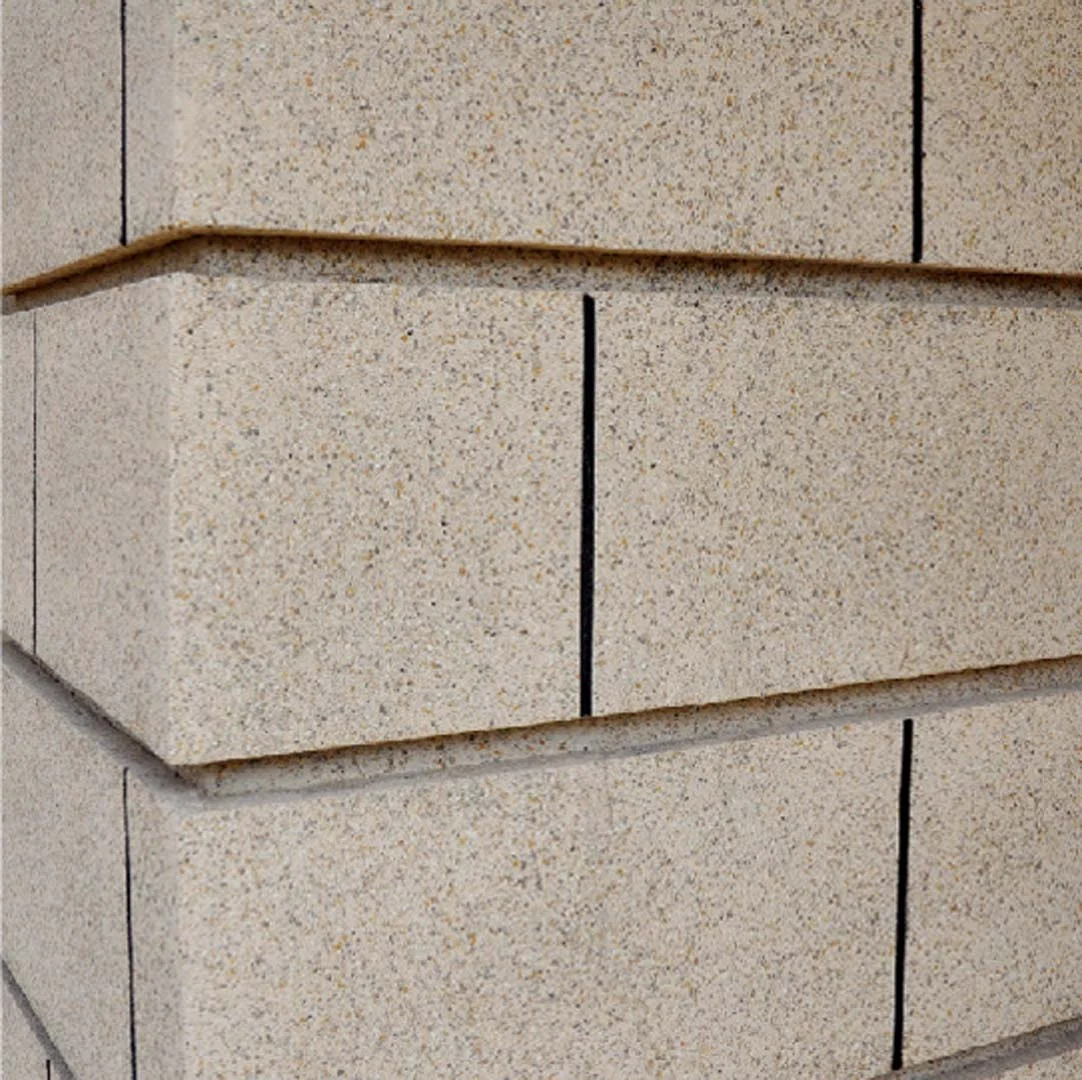

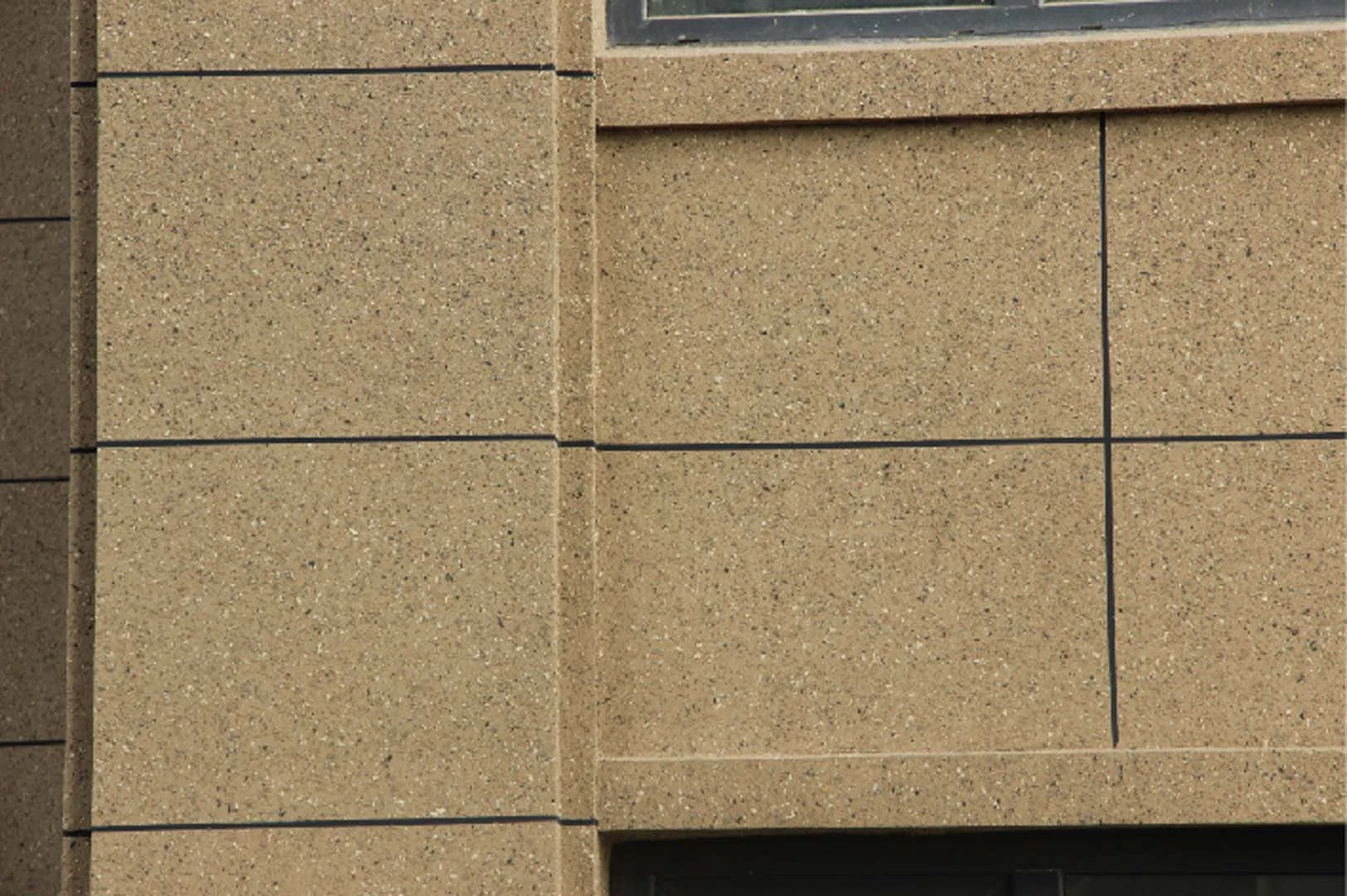

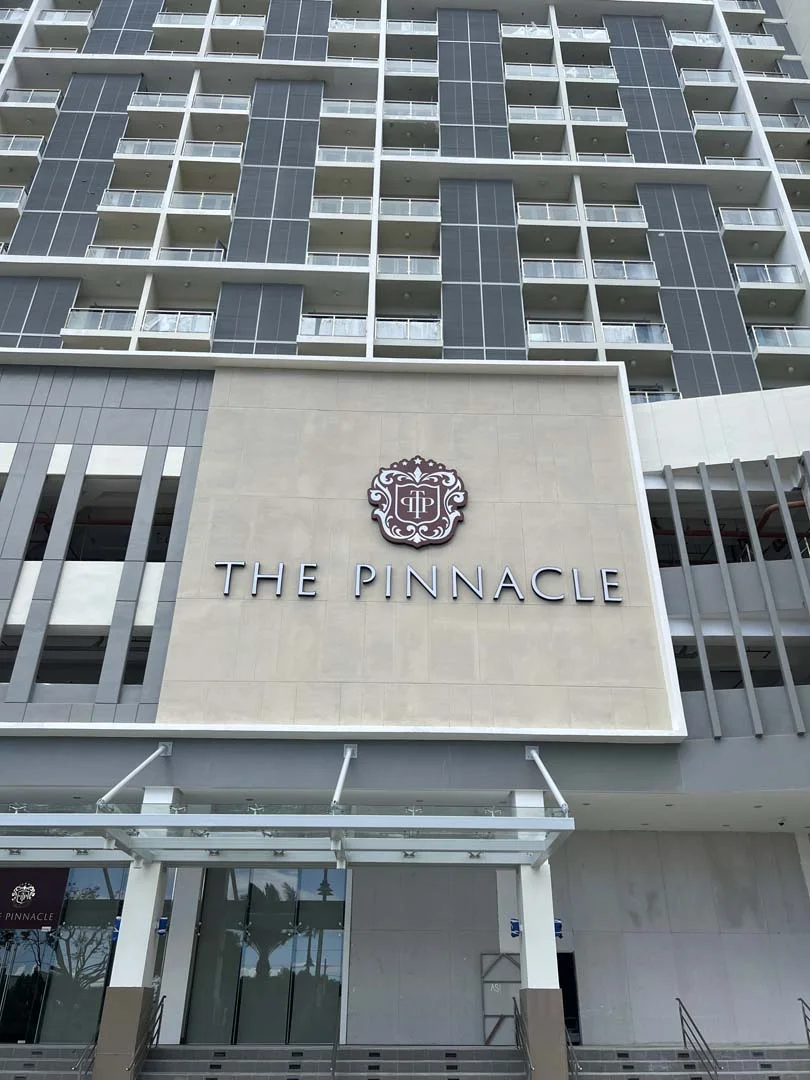

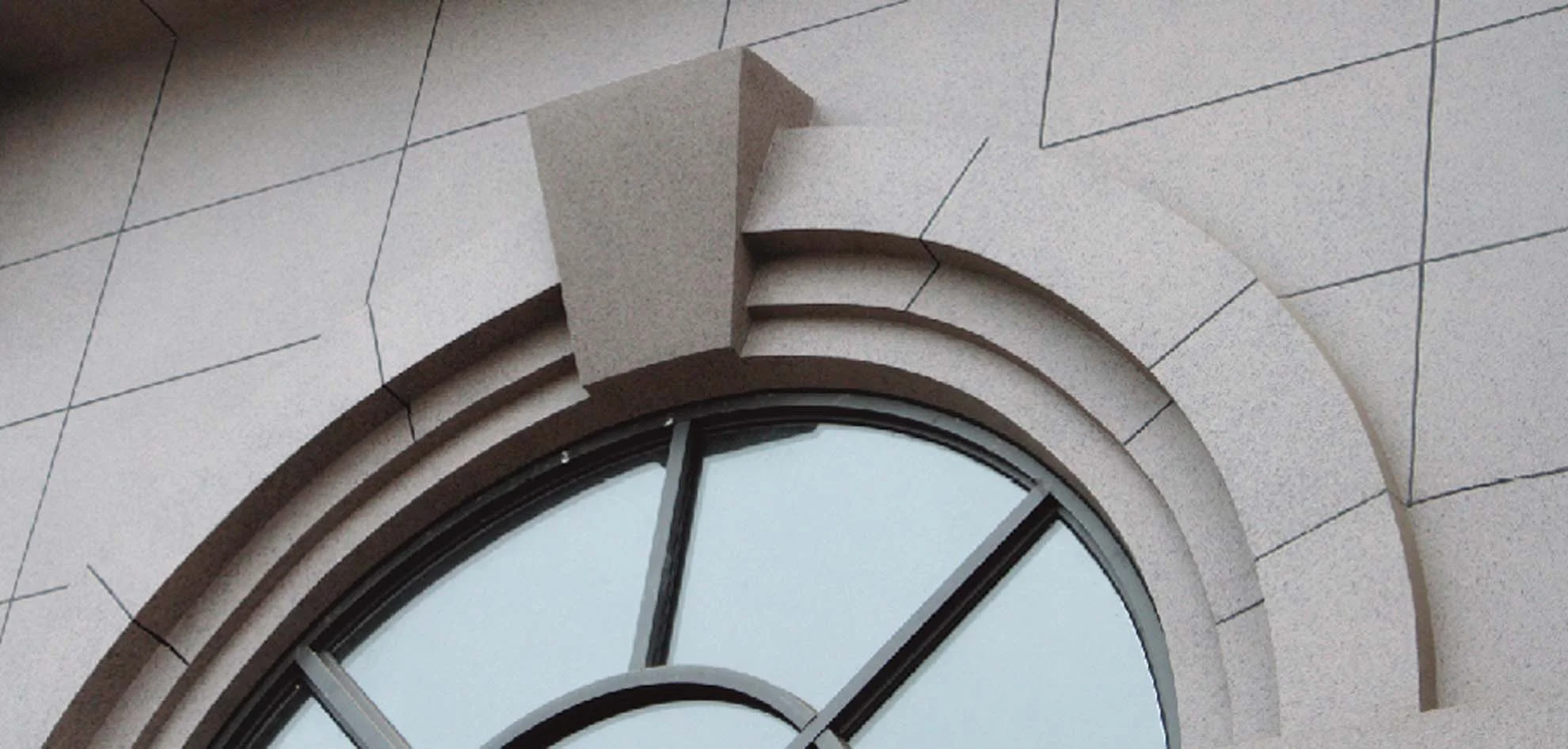

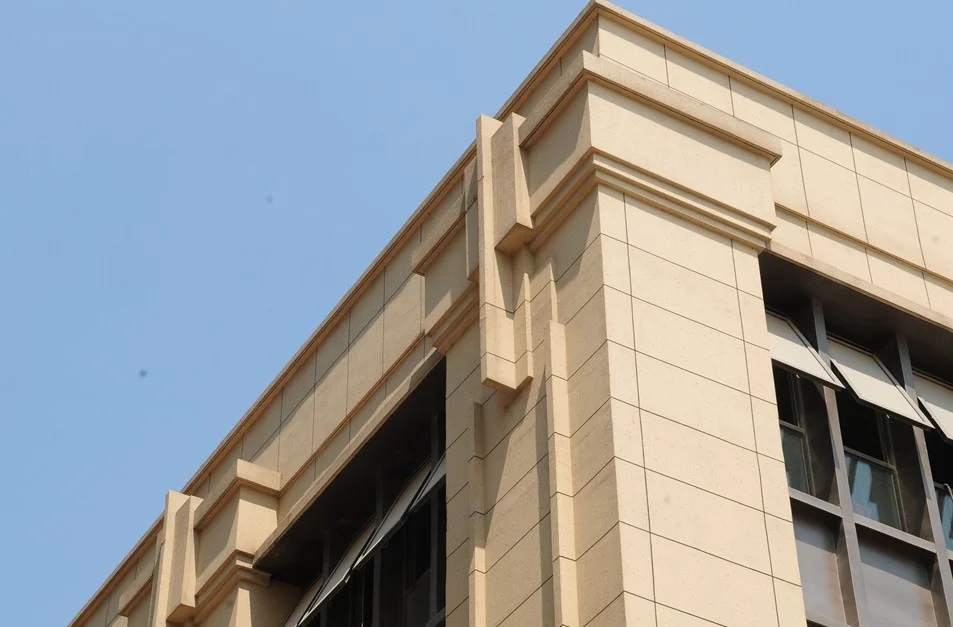

Gallery

STEP 1

Prepare substrate: cementitious, clean, stable. Moisture under 10%, pH under 10. Repair all defects.

STEP 2

Apply TechStone Primer by roller or spray. Allow full dry time before proceeding.

STEP 3

Apply Base Coat by roller or spray. Uniform coverage, full dry before pattern coat.

STEP 4

Apply Pattern Coat by spray gun (3mm nozzle, pressure regulator, tank system). Two passes required.

STEP 5

After 2nd Pattern Coat fully dries, lightly polish with 150-220 grit sandpaper. Remove all dust.

STEP 6

Apply Topcoat by roller or spray for UV and weather protection.

System Build	Primer → Base Coat → Pattern Coat → Topcoat
Application Method	Spray gun, 3mm nozzle
Coverage — Pattern Coat	0.30 kg/m²
Full Cure	7 days
CSI Spec	09 96 00

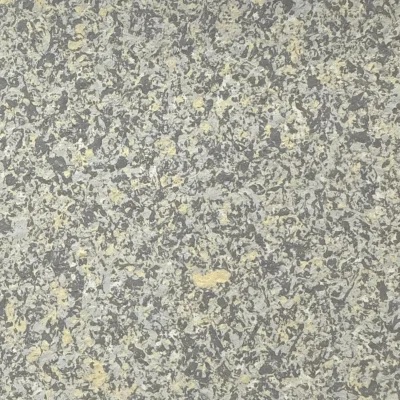

Autumn Gray

Need Name CR-S0002

Snow Leopard

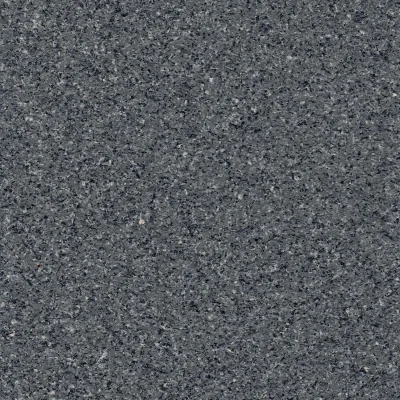

Barre Grey

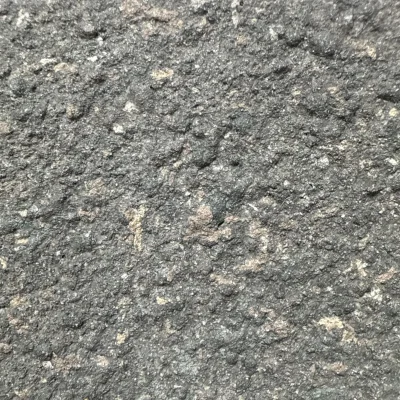

Charcoal Granite

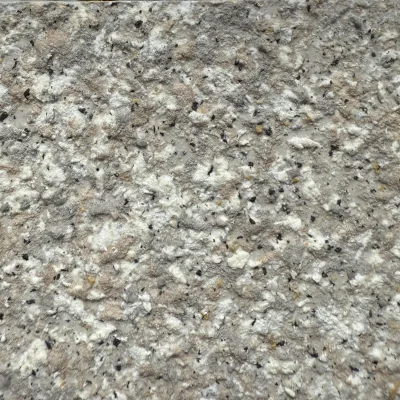

Coral Rose

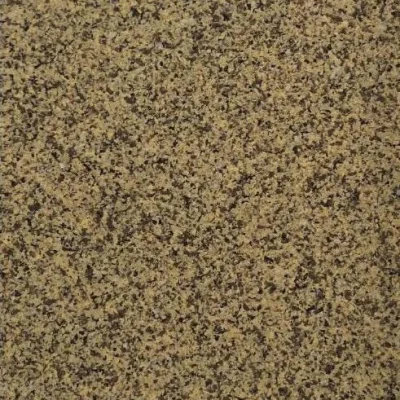

Dorado Beige

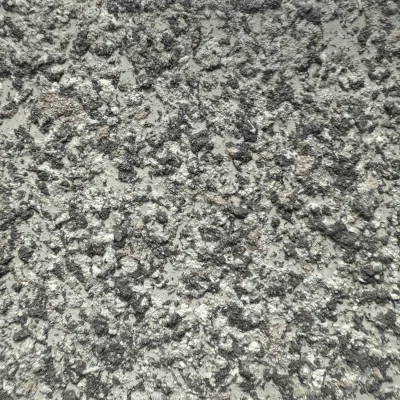

Galena Gray

Gallo Venetiano

Giallo Ornamental

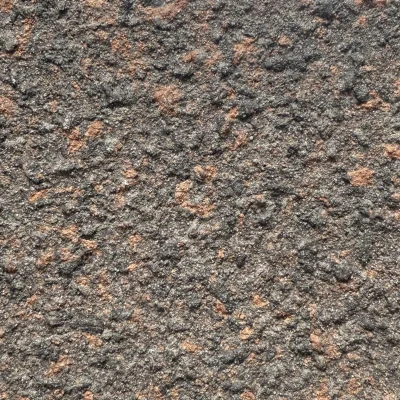

Imperial Red

Macquarie Gray

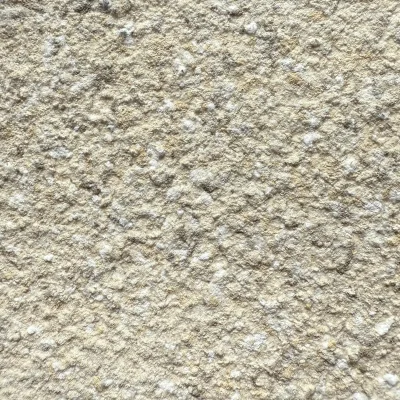

Mondim Beige

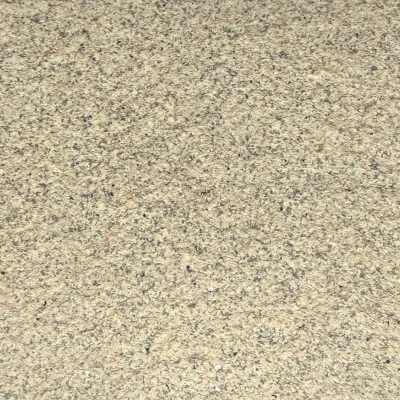

Morocco

Premium Red

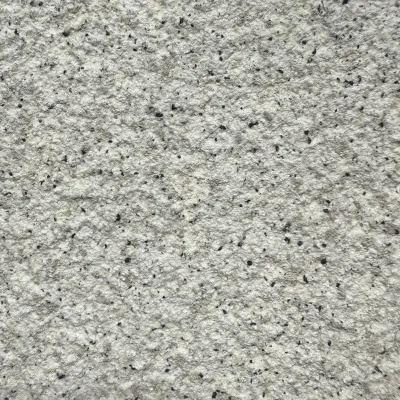

Snow Breeze

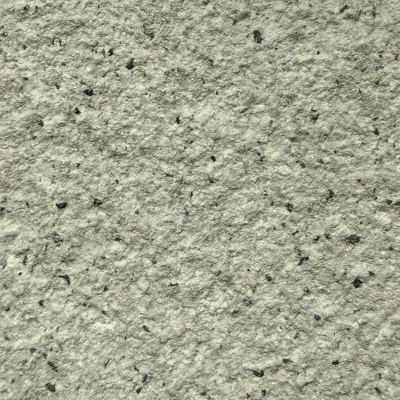

Summit Gray

Venetian Gold

Autumn Gray

711811041-P - Need Name

Barre Grey

Caruana Brown

Dorado Beige

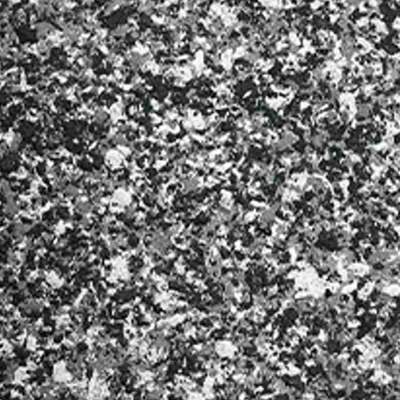

Giallo Ornamental

GW 45200630-G - Need Name

GW 55200701-G - Need Name

GW 57200626-G - Need Name

GW 58200624-G - Need Name

GW 72200621-G - Need Name

GW 74200924-G - Need Name

GW 76200916-G - Need Name

GW 79200625-G - Need Name

GW 79200819-G - Need Name

GW 79200906-G - Need Name

GW 81200907-G - Need Name

GW 86200702-G - Need Name

GW 87201003-G - Need Name

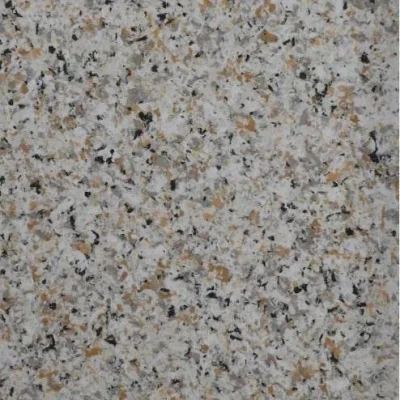

Nobilis Macaceous

Star White

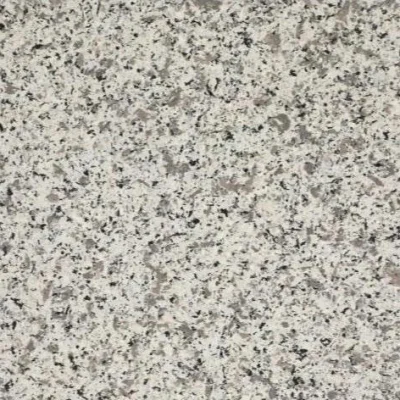

White Halayb

View all Liquid Granite finishes →

At a Glance

System Build	Primer → Base Coat → Pattern Coat → Topcoat
Application Method	Spray gun, 3mm nozzle
Coverage — Pattern Coat	0.30 kg/m²
Full Cure	7 days

Available Colours

Documents

TDS, SDS and application guides available to registered users.
